Interchangeable Surveillance Heads
Comparison
MSS Heads Compared
| Specs | KT-PD | KT-B2S | KT-B3SP |
|---|---|---|---|
 |  |  |
|
| Wireless Connectivity | --- | Wi-Fi or 4G/LTE capable | Wi-Fi or 4G/LTE capable |
| Can Dimensions | 6 x 6 x 8.5" or 8.5 x 8.5 x 8.5" | 6 x 6 x 8.5" or 8.5 x 8.5 x 8.5" | 17 x 8.5 X 8.5” |
| Cameras | --- | 2x BOSCH 360° panoramic cameras | 2x BOSCH 360° panoramic cameras 1x BOSCH PTZ camera |
| Ethernet Switch | --- | Ethernet switch, unmanaged | Ethernet switch, unmanaged |
| Deterrents | 2x red/blue flashing lights | 2x red/blue flashing lights 2-way loudspeaker | 2x red/blue flashing lights 2-way loudspeaker |
| Product Compatability | MSS 300 Series, MSS 600 Series, and MSS Fixed Base | MSS 300 Series, MSS 600 Series, and MSS Fixed Base | MSS 600 Series |
| Power Draw | 4W | 20W/27W | 32W/41W |
| Learn More | Learn More | Learn More |
Specifications
Interchangeable Surveillance Heads
Specifications
- All aluminum construction
- Latches: Standard & Key Lock
- Wiring: Cat6e & 18 AWG Wire
- 12/24VDC
- Weatherproofing: Square Rubber Gasket
- Can Dimensions: 6” x 6” x 8.5” or 8.5” x 8.5” x 8.5”
Other Features
- 2x red/blue flashing light deterrents with override switch
- Patented Quick Connect design allows for easy securing and removal of head
Specifications
- All aluminum construction
- Latches: Standard & Key Lock
- Wiring: Cat6e & 18 AWG Wire
- 12/24VDC
- Weatherproofing: Square Rubber Gasket
- Can Dimensions: 6” x 6” x 8.5”
Wireless Connectivity
- Traditional wireless antennas
- LTE/4G/5G Broadband
Network Switch
- Industrial Ethernet switch, unmanaged: (4) PoE+ copper ports, (2) non-PoE ports
Cameras
- 2x BOSCH 360° panoramic cameras
Deterrents
- Optional 2-Way BOSCH Loudspeaker Communication
- 2x red/blue flashing light deterrents with override switch
Other Features
- Patented Quick Connect design allows for easy securing and removal of head

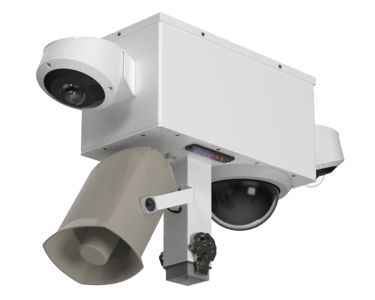

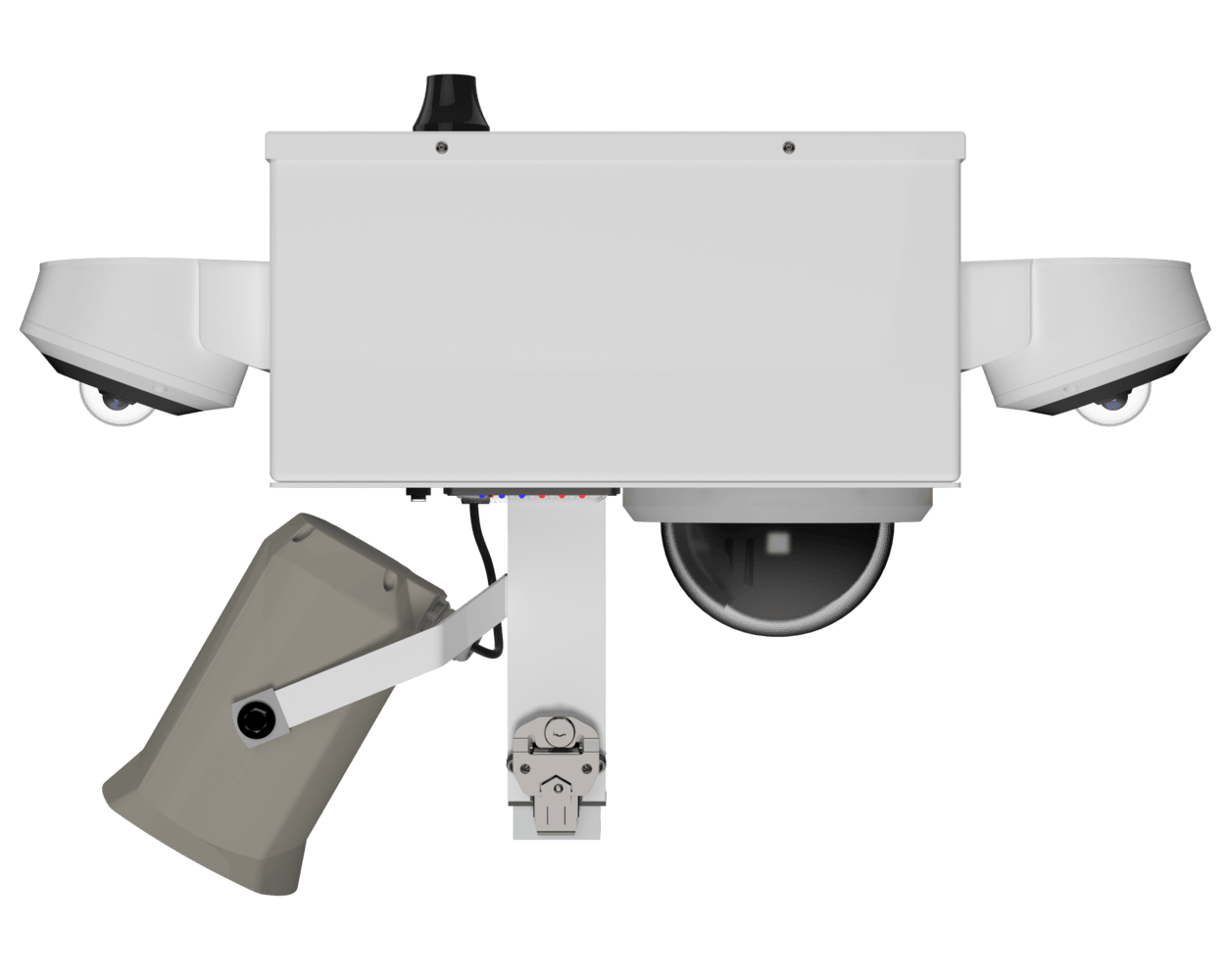

Specifications
- All aluminum construction
- Latches: Standard & Key Lock
- Wiring: Cat6e & 18 AWG Wire
- 12/24VDC
- Weatherproofing: Square Rubber Gasket
- Can Dimensions: 17 x 8.5 x 8.5”
Transmission Options
- Traditional wireless antennas
- LTE/4G/5G Broadband
Network Switch
- Industrial Ethernet switch, unmanaged: (4) PoE+ copper ports, (2) non-PoE ports
Cameras
- 2x BOSCH 360° panoramic cameras
- 1x BOSCH PTZ camera
Deterrents
- Optional 2-Way BOSCH Loudspeaker Communication
- 2x red/blue flashing light deterrents with override switch
Other Features
- Patented Quick Connect design allows for easy securing and removal of head
